Description
| System Hardware | |
|---|---|
| CPU | Intel® Elkhart Lake™ 11th Celeron® J6412 |
| Memory | 1×DDR4 SO-DIMM memory slot, supporting up to 32GB |
| Storage | 1×M.2 2280 SLOT (SATA/NVMe, PCIe X1 interface, automatic recognition) |
| Display | |

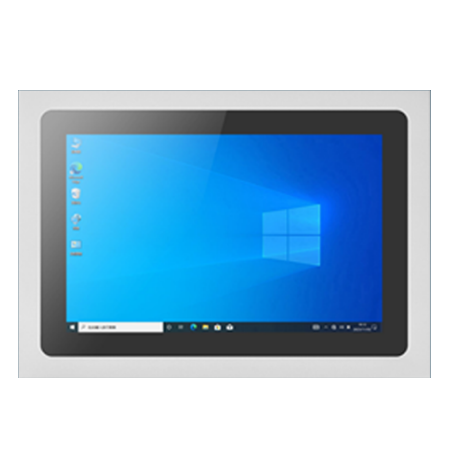

| LCD | 10.1″ LCD |
| Touchscreen | Capacitive touch screen |
| Max. Resolution | 1280×800 |
| Luminance | 350 cd/m² |
| Contrast Ratio | 800:1 |
| OS | |
| OS | Windows 10/11, Linux |
| I/O Interface | |
| USB | 4×USB3.0 (4×USB2.0 built-in) (USB3.0 3–4 support 1.5A, 1–2 support 0.9A) |
| COM | COM1–COM6 (RS232/422/485 jump optional; default RS232), supports 5V/12V/RI optional; COM1/3/4: 1 out 3 serial port cables; COM2/5/6: 2 out 3 serial port cables; RS232/485 jump optional |
| Audio | 1×4-section 3.5mm audio jack (supports headphone audio output and microphone audio input); 1×Horn 8Ω 3W |
| Video | 1×HD, 1×VGA (pins can be customized for export) |
| DC Port | Phoenix terminal 3-pin |
| Mini PCIe | 1×Mini PCIe (WiFi/BT/4G/5G optional, one out of three) |
| SIM Card | 1×Built-in SIM card holder |
| GPIO | NA |
| Power | |
| Power | 10–32V wide voltage input, standard with 12V/5A adapter |
| Environment | |
| Vibration Protection | 5–17Hz / 1.0mm amplitude; 17–200Hz / 1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms cycle |
| IP Rating | Front panel IP65 |
| Operating Temp. | -10~55°C (wide temperature optional) |
| Storage Temp. | -30~70°C (wide temperature optional) |
| Humidity | 95% @40°C, non-condensing |
| Mechanical | |
| Dimension | 290×210×55.4mm |
| Weight | 3kg |
| Color | Silver |
| Material | Aluminum alloy |
| Mounting | VESA mounting: 100×100mm; Embedded installation: 273.5×195mm |
