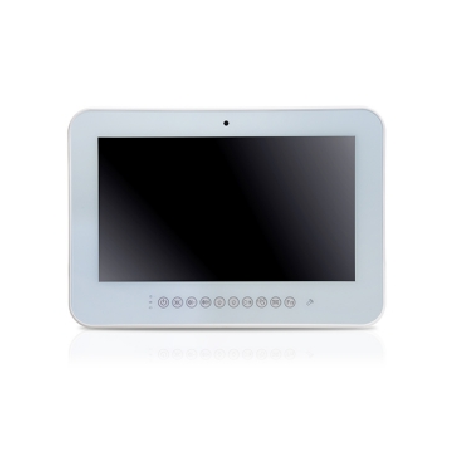

Description
| Specification | WMP 15J IP0A (STD) | WMP 15J IP0B (ISO) |
|---|---|---|
| Main System | ||
| CPU / Chipset | FCBGA1528 8th Gen Intel® Core i7/i5 (15W Max) Optional vPro (i7/i5 SoC) |
|
| Graphic | Intel® integrated UHD Graphics 620 | |
| RAM | Two DDR4 Dual-2400MHz SO-DIMM sockets, non-ECC, up to 64GB | |
| OS Support | Optional Windows 10 IoT Enterprise LTSC | |
| Storage | 2.5” SATA3 SSD/HDD + M.2 SSD (M Key 2242/2260/2280) PCIe x4 & SATA3 | |
| Expansion | 1 x PCIe x4, 1 x M.2 E Key Optional WLAN + Bluetooth module |
|
| Display | ||
| Size | 15.6” Wide TFT-Color LCD (16:9) | |
| Resolution | Standard: 1366 x 768, 16.7M colors, 170°(H)/160°(V), 400 nits, CR 500:1 (typ.) Option: 1920 x 1080, 16.7M colors, 178°(H)/178°(V), 500 nits, CR 1000:1 (typ.) |
|
| Touch Screen | Full Flat Projected Capacitive Touch / ≥84% Light Transmission / 7H Hardness / 765g @ 45° / Life: 50000 times | |
| I.O. Ports | ||
| USB | 4 x USB 3.1 Gen II | 4 x USB 3.1 Gen II, 1 x ISO USB 2.0 |
| COM | 1 x RS232/422/485, 1 x RS232 | 1 x RS232/422/485, 1 x RS232, 1 x ISO RS232/422/485, 1 x ISO RS232 |
| LAN | 2 x RJ45 | 2 x RJ45, 1 x ISO RJ45 |
| Audio | 2 x 3.5mm phone jack connectors (Line-out, Mic-In) | |
| Video Out | 1 x DP 1.2, 1 x HDMI 4.1 | |
| Control Hot Keys (R to L) | ||
| Power Button, Audio Adjustment, Brightness, LCD On/Off, Clean Me, Webcam Disable, Programmable Function Key | ||
| Mechanical & Environmental | ||
| Cooling | Fanless Design with External Heatsink | |
| Power Input | DC 14~24V input | |
| Power Adapter | AC 100~240V / 47~63Hz / DC 12V, 100W | |
| Temperature | Operating 0~40°C (chamber) / Storage -20~60°C | |
| Humidity | Operating & Storage: 10~90%, non-condensing | |
| IP Rating / Housing | Front IP65, whole system IPx1 / Front: Full flat design / Touch standard / Glass customized / Rear: Plastic White with Anti-bacteria (MRSA) Housing | |
| Dimensions (Net) | 430 mm (H) x 300 mm (V) x 88.4 mm (T) | |
| Weight (Net) | 5 kg (without power adapter/battery pack) | |
| Mounting | Optional Stand, VESA 75/100 | |
| Certification | ||
| Certifications | CE: EN 60601-1-2:2015/A1:2021(V4.1), IEC 60601-1-2:2014+AMD1:2020 EN 60601-1:2006/A2:2021; IEC 60601-1:2005/AMD1:2012; IEC 60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B (PSU with PSE) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) ISO 14971 / IEC 62133 |
|
