Description
| Model | |
|---|---|

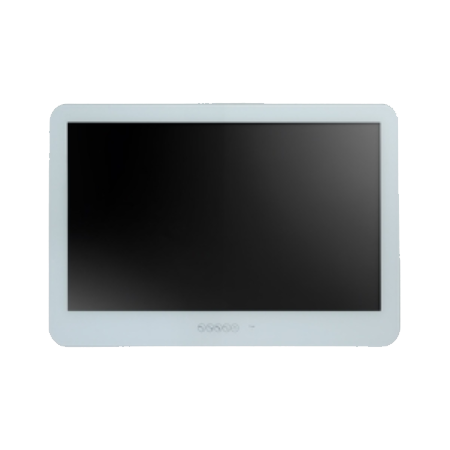

| WMD-153 | |
| Main System | |
| Display Size | 15.6” wide TFT-Color LCD (16:9) |
| Resolution | 1366 × 768 (XGA) |
| Color Support | 16.7M colors (RGB 8-bit) |
| Viewing Angles (H/V) | 170° / 160° |
| Brightness | 400 nits |
| Contrast Ratio | 500:1 (Typ.) |
| Touch Screen | |
| Type | Full flat projective capacitive |
| Light Transmission | 90% ± 3% |
| Surface Hardness | 7H (pencil) |
| Touch Life | 100M times |
| I/O Ports | |
| USB | USB 2.0 × 1 |
| Audio | 3.5mm Line-in × 1, Speaker 2W × 2 |
| Video | DVI-D × 1, DisplayPort × 1, HDMI 1.4a (input) × 1 |
| Control Keys | Power Button Auto / OSD Off Up / Speaker Adjust Down / Mute Menu / Enter |
| Power | |
| Input | DC 12V |
| Adapter | AC 100~264V / 47~63Hz to DC 12V |
| Mechanical & Environmental | |
| Operating Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Humidity | 10 ~ 90%, non-condensing |
| IP Rating / Housing | IP65 (front), IPx1 (whole system) / Plastic, Hospital White |
| Dimensions (Net) | 430 mm (H) × 300 mm (V) × 83 mm (T) |
| Weight (Net) | 4.6 kg (without adapter/battery) |
| Mounting | Optional Stand, VESA 75 / 100 |
| Certification | |
| CE | EN 60601-1-2:2015 (V4.0), EN 60601-1:2006/A1:2013 (V3.1) |
| VCCI | 2016-11, Class B (PSU with PSE) |
| FCC | Part 18 Class B |
| ISO | ISO 14971 |
