| Performance |
Communication |
Reliability |
| Intel Core i5-1235U/i7-1255U processor. |
2.4G/5.8G Dual band WIFI 6 |
IP65 Waterproof and Dustproof, Anti-Static |
| Windows 11 OS and 8GB RAM＋128GB storage. |
Optional high speed 5G |
Vibration & 1.22m drop resistant |
| 12.2 inch IPS Full HD screen with 10-point capacitive touch |
BT 5.1 fast transmission |
MIL-STD-810G certified |
|
|
|
| Features |
Basic Parameters |
Performance Parameter |
| Choose 1 from 4 modules (2D scan engine, RJ45 |

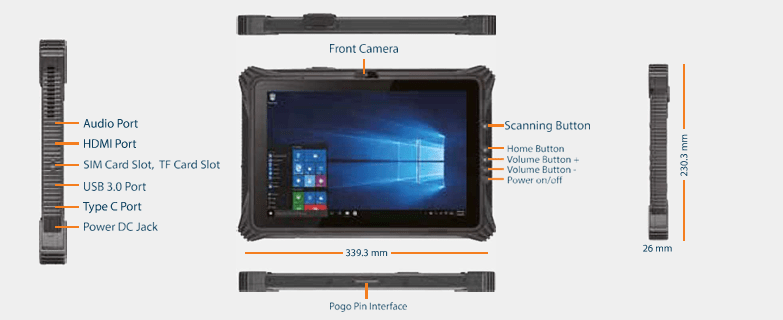

Dimension – 339.3 x 230.3 x 26mm |
CPU – Intel Core i5-1235U/i7-1255U |
| Gigabit Ethernet, DB9 and USB2.0 ) |
Weight – Device unit 1500g |
OS – Windows 11, Optional Windows 10 |
| Support GPS, GLONASS, optional Beidou |
Device Color – Black |
RAM – 8GB, Optional 16GB, Up to 64GB |
| Equipped with multiple accessories, like docking charger, |
LCD – 12.2 inch IPS 16:10，1920×1200, 650nits/280nits |
Storage – 128GB, Optional 128GB, Up to 512GB |
| hand-strap, vehicle mount, car charge, carry handle |
Touch Panel – 10 point G+G capacitive touch screen |
|
|
Camera – Front 2.0MP Rear 8.0MP |
|
|
I/O – USB 3.0 Type-A x 1, USB Type-C x 1, |
|
|
SIM Card x 1, TF Card x 1, |
|
|
HDMI 1.4a x 1, 12pins Pogo Pin x 1, |
|
|
Φ3.5mm standard earphone jack x 1, |
|
|
Φ5.5mm DC jack x 1 |
|
|
Power – AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A |
|
NFC – Optional, 13.56MHz, Card reading distance: 4cm |
|
|
Fingerprint – Standard |
|
|
RTV Battery – 3V 210mAH |
|
|
|
|
| Battery |
Battery |
Network Connections |
| Capacity – 7.4V/700mAh |
Capacity – 7.4V/6300mAh |
WIFI – WiFi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax (2.4G/5.8G) |
| Type – Built-in Li-polymer battery |
Type – Removable Li-polymer battery |
Bluetooth – BT5.1 Transmission distance: 10m |
|
Endurance – 8hrs |
4G/5G |
|
|
(Optional) – 5G SA&NSA: |
|
|
LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 |
|
|
WCDMA: B1/B5/B8 GSM: B3/B8 |
|
|
N1/N3/N5/N7/N8/N20/N28/N38/N40/ |
|
|
N41/N71/N77/N78/N79 |
|
|
GNSS – Support GPS, Glonass, optional Beidou |
|
|
|
| Reliability |
Extension Modules（1 Out Of 4) |
|
| Operate Temperature – -20 °C ~ 60 °C |
Ethernet |
|
| Store Temperature – -30 °C ~ 70 °C |
Interface – RJ45 (10/100/1000M) x 1 |
|
| Humidity – 95% Non-Condensing |
Serial Port – DB9 (RS232) x 1 |
|
| Rugged Feature – IP65 certified, MIL-STD-810G certified |
USB2.0 – USB 2.0 x 1 |
|
| Drop Height – 1.22m drop |
2D – Optional, Optical resolution: 5mil/ |
|
| Electrostatic |
scan speed: 50 times/s |
|
| Discharge – ± 8kV contact discharge, ± 15kV air discharge |
|
|
|
|
|
