Description
| System Mainboard | IB801/ IB802T (F-1 Stepping) |
| CPU Type | Intel® Atom® x7-E3950/x5-E3940/x5-E3930 & Pentium® N4200/ Celeron® N3350 Series Processors |
| System Speed | Up to 2.5GHz |
| Memory | 1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB |

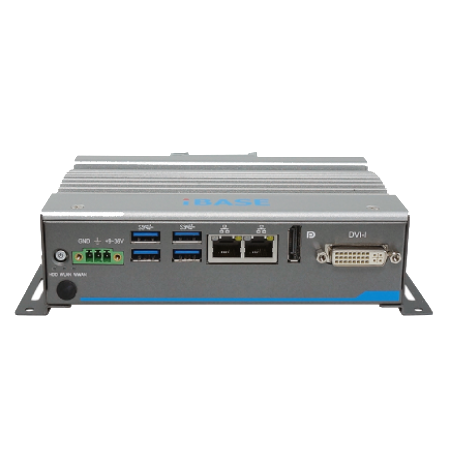

| Rear Panel External I/O | 1x DVI-I + 1x DisplayPort 4x USB 3.0 ports 2x RJ45 Gigabit Ethernet port 3x LED indicators (HDD, WLAN, WWAN) 1x power button with green LED (Silver power button with Green LED for AGS100, Black power button with Blue LED for AGS100T) 1x 3-pin DC-in terminal block for 9V-36V 1x Antenna hole for WLAN module |
| Left Panel External I/O | 2x RS232/422/485 port for COM#1/COM#2 1x Antenna hole for WLAN module 1x Line-out (AGS100 for 2W mono speaker, AGS100T for stereo output ) |
| Right Panel External I/O | 1x SIM card slot |
| Expansion Slots | 1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E + SATA) 1x 2230 M.2 E-Key socket for WLAN & BT (USB 2.0 + PCI-E) 1x 3042 M.2 B-Key socket for WWAN & SSD (USB 2.0 + SATA) |
| Storage | 1x mSATA socket (Mini-PCI-E) 1x 2242 M.2 B-Key socket for SSD |
| Construction | Aluminum & steel |
| Chassis Color | Silver & Gray |
| Mounting | DIN-rail mounting (DIN-rail mount kit included) Desktop or wall mounting (wall mount kit included) |
| Dimensions | 160mm (W) x 110mm (D) x 44mm (H) 6.3″ (W) x 4.33″ (D) x 1.73″ (H) |
| Weight | 1kg |
| Operating Temperature | For E-series CPU: -40°C~70°C (-40°F~158°F) For N-series CPU: -20°C~60°C (-4°F~140°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F~185°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | Operatiing: 2.0 grms / 5~500Hz / random operation (with IEC 60068-2-64) Non-Operating: 3.0 grms / 5~500Hz / random operation (with IEC 60068-2-64) |
| Shock | Operating: 30G/11 ms Duration (with MIL-STD-810G) Non-operating: 40G/11 ms Duration (with MIL-STD-810G) |
| Certification | CE / LVD / FCC Class B / CCC (AGS100 Only) / UL |
| Operating Systems | N/A |
